New Design Welded wire automatic fan guard welding machine specifications
1.Automatic spot welder for inner ring
This machine is special for welding inner ring with radial wires for electric fan guard. By presetting length and quantity of radial wires, the machine can automatically feed, cut, weld, and rotate till all the radial wires are welded with the inner ring.
- Code: WL-IR-16K
- Suitable wire diameter: 1.0-1.8mm
- Size of fan guard: 8”-20” (by changing flange moulds)
- Rated welding power: 16kVA
- Productivity: about 800-1000 pieces per 8 hours shift (16”, 120 pieces radial wires)
- Air consumption: 0.15M3/min
- Welding current: 6A every welding point
- Dimension: 1600 x 1000 x 1350mm
- Weight: about 400kg

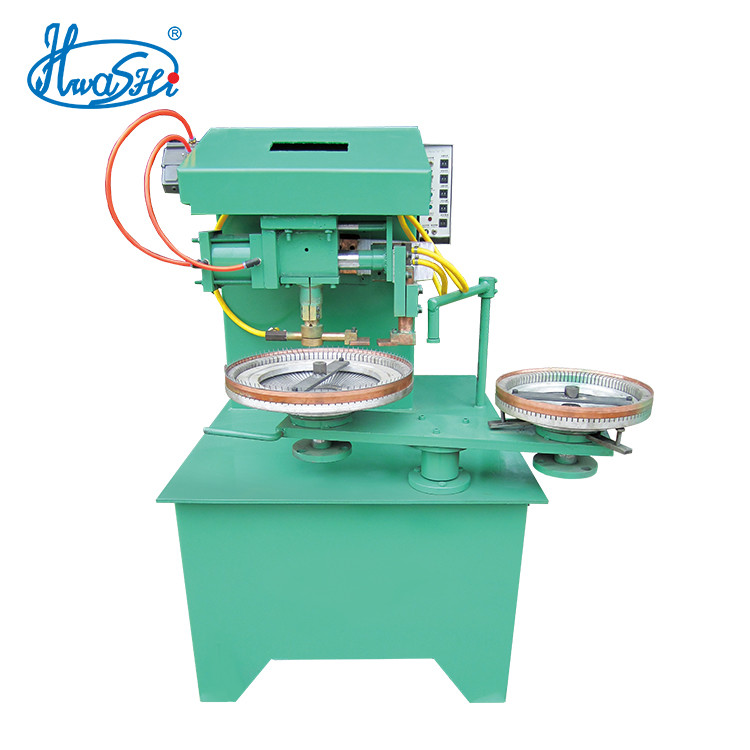

2.Auto Welding Machine for Outer Ring
After the inner-ring is welded and formed by hydraulic press, put them into the mould on this outer ring welding machine, distribute those 120 wires evenly, start the machine and the outer ring can be welded. Different size of guard needs different welding mould.
There are two mould holders. During one is welding, another can be prepared.
- Code: WL-OR-40K
- Suitable wire diameter of the outer ring: 3-4mm
Rated welding power: 40KVA
- Size of guard: 8”-20”
- Productivity: 1000-1500 pieces (16”, 120 pieces radial wires)
- Air consumption: 0.4M3/min
- Welding current: 10A per time
- Dimension: 1200 x 950 x 1550mm
- Weight: about 500kg

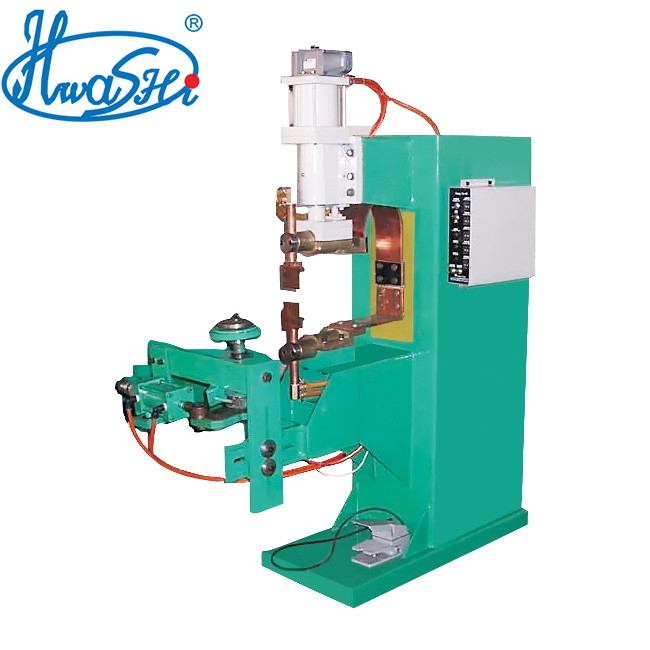

3.Middle Ring Welding Machine
This machine is for welding the middle ring on the fan guard.
- Code: WL-MR-40K
- Suitable wire diameter for middle ring: 1.5-3mm
- Rated welding power: 40KVA
- Size of guard: 8”-20”
- Productivity: 5000-8000 pieces (16”, 120 pieces radial wires)
- Air consumption: 0.5M3/min
- Welding current: 10A per time
- Dimension: 1150 x 450 x 1600mm
- Weight: about 350kg
4. Hydraulic Press
This machine is special for forming different fan guard by different moulds.
- Code: WL-YA-25T
- Hydraulic station motor power: 5.5kW
- Productivity: 6000-8000 pieces per 8 hours shift
- Dimension: 1250 x 1050 x 2350mm,
- Weight: about 2500kg
5.Automatic ring making machine
This machine is for producing inner ring, middle ring and outer ring for fan guard.
- Code: WL-DQ-06
- Hydraulic rolling and cutting, quick and accurate (length tolerance less than 1%).
- Suitable diameter: 1.0-6.0mm
- Suitable ring diameter: 60-600mm
- Main driving power: 1.5kW
- Linear wire feeding speed: about 30m/min
- Productivity: 8000-10000 pieces per 8 hours shift
- Dimension: 1350 x 700 x 1450mm
- Weight: about 350kg

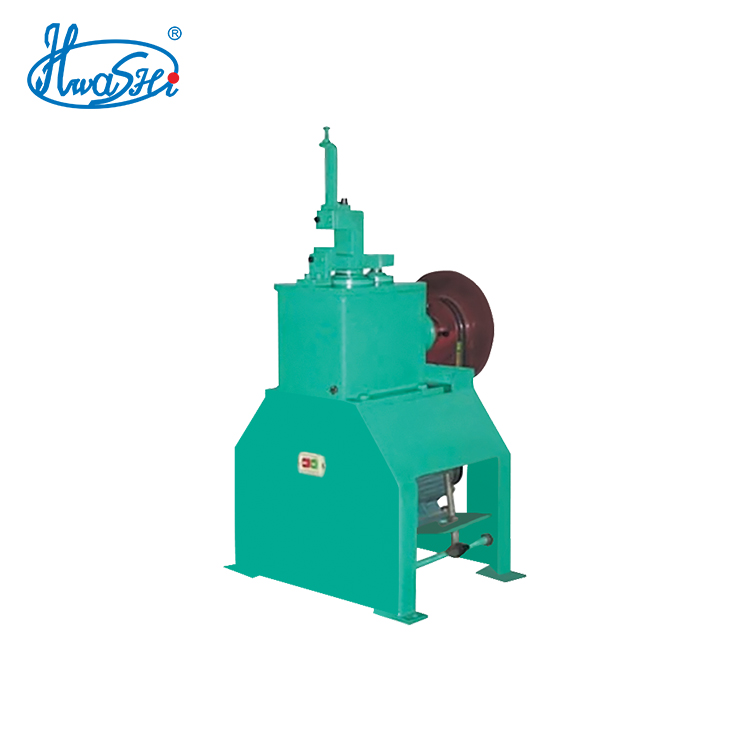

6..Edge trimming machine
- Code: WL-XB-2
- Driving motor power: 0.55kW
- Productivity: 6000-8000 pieces per 8 hours shift
- Weight: about 80kg
- Dimension: 600 x 400 x 800mm
