Twelve-Head multi-point Welded Automatic Wire Mesh Welding Machine with Multiple points welding
DESCRIPTION

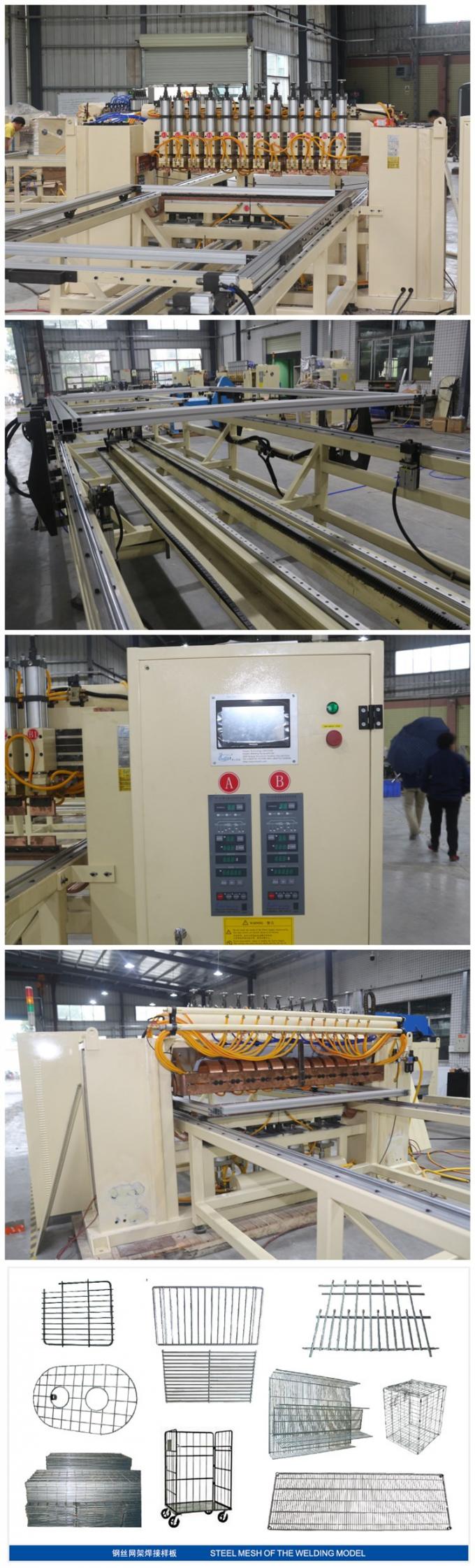

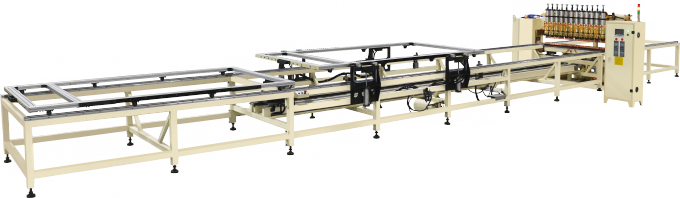

We adopt the design of twelve groups of welding electrodes and gantry type welding machine with CNC programming system. This machine is composed of gantry type support, welding transformer, pneumatic drive device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system.The worker only needs to put the material into the jigs and press the start button, then the machine will automatically finish welding.
SPECIFICATION
| Model | WL-SQ-MF150K×2 |
| Input Voltage | two-phase 380 V |
| Input Current | 400 A |
| Output Voltage | 12V |
| Max Short Circuit Current | 45000 A |
| Welding Effective Width | 1500 mm |
| Welding Effective Length | 2000 mm |
| Feeder Moving Speed | 500 mm/sec |
| Upper Welding Cylinder | ￠ 100 x 100 mm |
| Lower Welding Cylinder | ￠ 160 x 100 mm |
APPLICATION
Continuous welding wire mesh
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
