400KVA IBC Tank Cage Production Machines Welding Punching Machine

Name: 400KVA IBC Tank Cage Production Machines Welding Punching Machine
Brand: Hwashi
Price: 1 USD

Brand Name : Hwashi

Model Number : WL-SQ-MF 90Kx6

Certification : CE, ISO, GS, CCC

Place of Origin : Guangzhou Hwashi Technology INC

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 15 sets per month

Delivery Time : 90 working days

Packaging Details : wooden packaging

Usage : Intermediate Bulk Container Cage making

Voltage : Three-phase power supply 380V

Electricity Requirement : Three-phase Four Wires 380V±10%

Automatic Moving Speed : 200-500mm/s Adjustable

Power : 400KVA,air switch 600A

Effective Welding Width : 1200mm

Effective Welding Length : 4000mm

Machine Size : 3500x165000mm

Required Operator Number : Two people

Contact Now

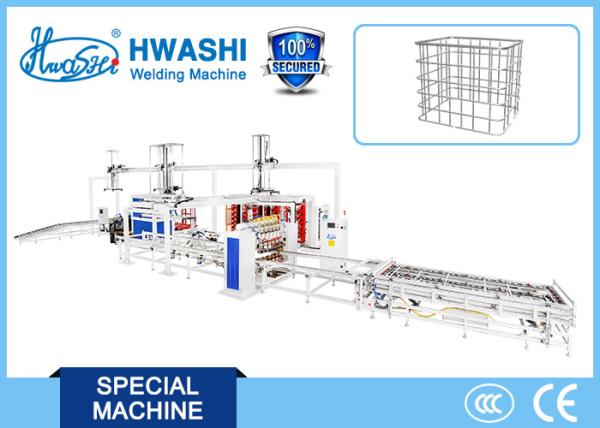

HWASHI IBC Tank Cage Automatic Production Machines (welding+bending+puching machine, automatic running)

First Step: IBC Tank Cage Welding

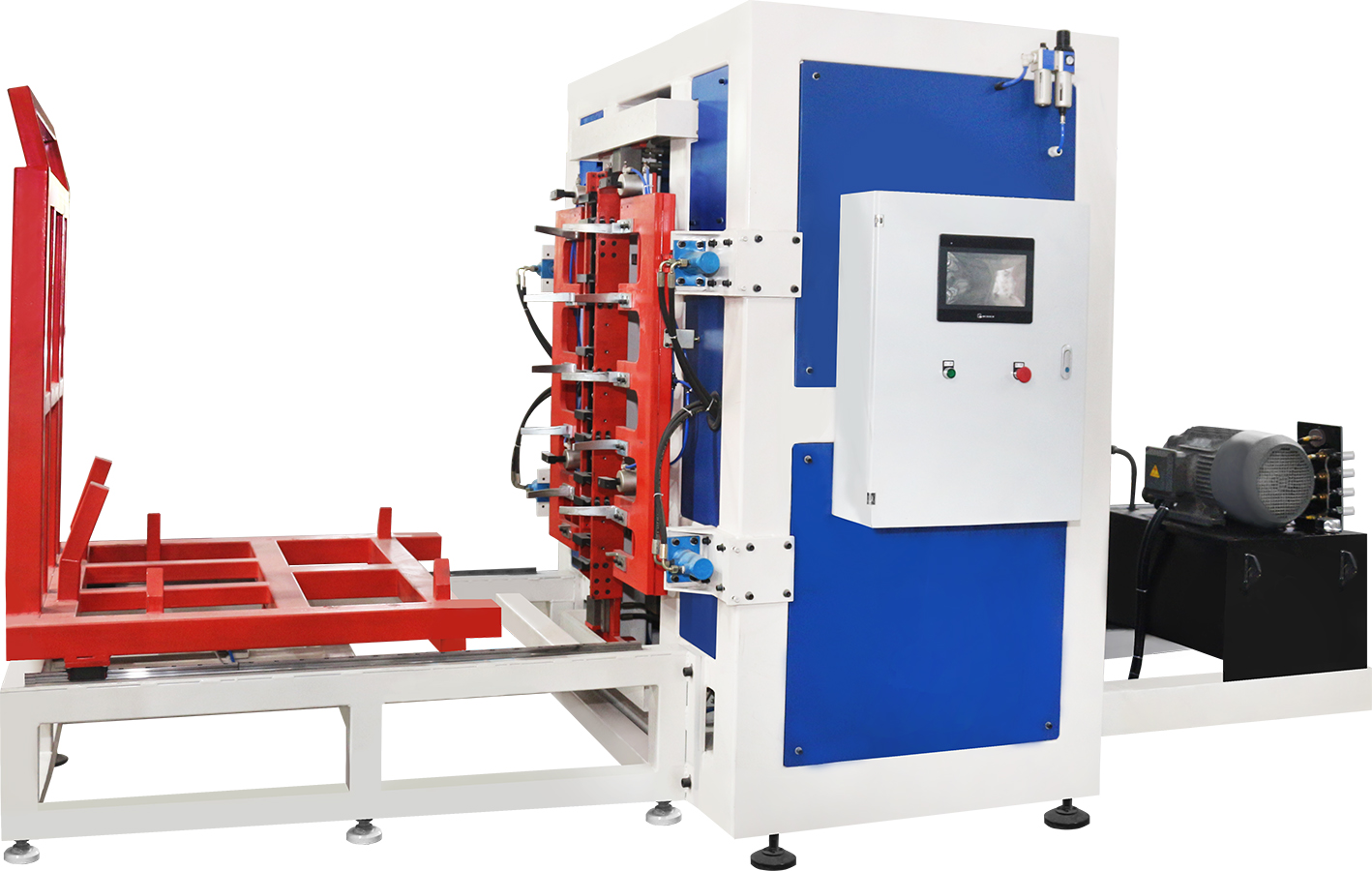

Second Step:  IBC Tank Cage Bending
 Third Step:  IBC Tank Cage Pipe Inserting and Locking
 Fourth Step:  IBC Tank Cage Punching And Hole Making

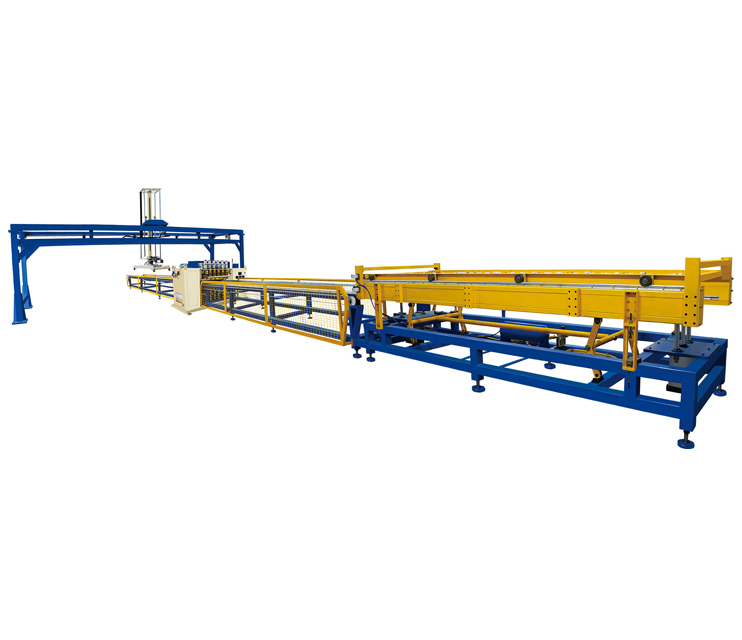

IBC tank cage grid welding machine 1) Machine Size:3500x165000mm 2) Welding Source: 6 sets MF DC Power Source 3) Feeder Platform Option: Single Layer or Double Layer 4) Unloading System Option: Manual Unloading or Automatic Mechanical Arm Unloading 5)Effective Welding Width:1200mm 6) Effective Welding Length:4000mm	IBC tank cage mesh Bending Machine 1) Bending Method:Four columns bending at the same time 2) Bending Size:1200+1000mm 3) Loading Method:Manual or Automatic 4) Bending Force:Hydraulic 5) Required Operator Number: Manual: 1 people Automatic: 0

IBC Tank Cage Mesh Locking Machine 1) Max. Working Height:1200mm 2) Loading Method:Manual: -manual inserting and manual loading -Automatic: automatic inserting and loading 3) Lock shape:The outside is round and the inside is backtoothed (customized) 4) Bending Force:Hydraulic+Pneumatic 5) Required Operator Number: Manual: 1 people Automatic: 0	IBC Tank Cage Punching and Hole Making Machine 1) Max. Working Size:1200x1000mm 2) Loading Method:Manual/Automatic 3) Punching Shape:Customized 4) Punching Force:Hydraulic+Pneumatic 5) Required Operator Number: Manual: 1 people Automatic: 0

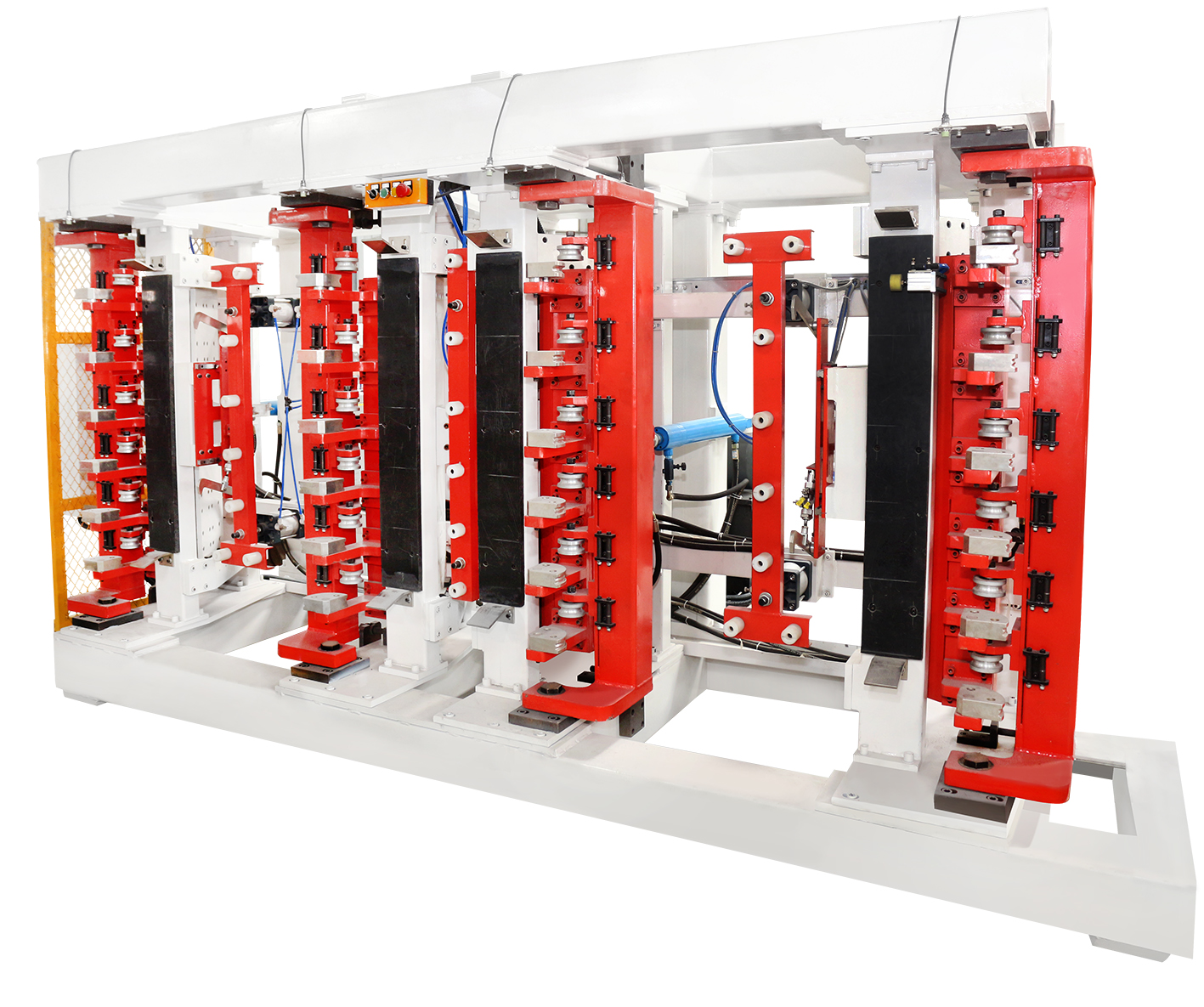

IBC Tank Cage Frame Base Welding Machine 1) The design adopts horizontal structure and 7 welding heads forcompleting the welding of base frame. 2) It adopts 3 sets of MF DC 160KVA power. 3) Effective Welding Width:1200mm 4) Effective Welding Length:1000mm 5) Machine Size:2500mmx2500mm	Automatic Mechanical Arm Line 1. The machine frame is processed as a whole, with high precision, stable and efficient operation. 2. The machine is controlled by human-machine interface +PLC programming control mode, with high degree of automation. 3. The whole automatic production line can complete the bending, locking and punching of the frame in 40 seconds. 4. The whole automatic production line can be operated by only one worker.
