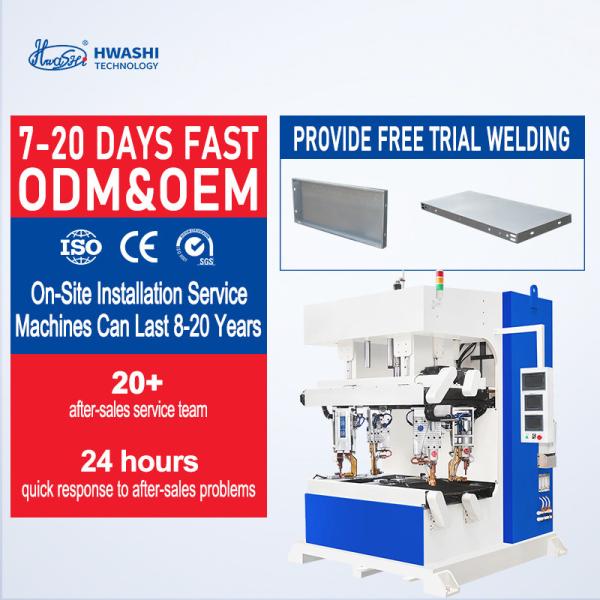

The Stainless Steel Welding Machine is suitable for welding sheet metal door panels and other products

Name: The Stainless Steel Welding Machine is suitable for welding sheet metal door panels and other products
Brand: hwashi
Price: 1 USD

The Stainless Steel Welding Machine is suitable for welding sheet metal door panels and other products Manufactures

Brand Name : hwashi

Model Number : WL-SF-50/75/100K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 60 working days after received your payment

Packaging Details : sea worthy wooden package

Model : WL-SF-50/75/100K

Input Power (V/φ) : 380/3

Rated Power (KVA) : 50/75/100

Applicable Material : Stainless Steel, Carbon steel, Aluminum, Metal

Electrode Force (KG) : 250-400

Wleding Thickness (MM) : 3.0+3.0

Warranty : 1 years

Contact Now

The Stainless Steel Welding Machine is suitable for welding sheet metal door panels and other products

Crank arm mobile flat plate spot welder is designed with multi-joint manually movement accordingto the principle of mechanical arm.The bottom electrodeplate mode is suitable for the product of plate table withmulti-welding point on the surface, to ensure thesmoothness of the product surface and consistencyof welding point.


Intelligent welding control system Intelligent Touch Screen Controller Input and read welding parameters. The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily	Welding platform Flat big copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The welding gun move freely, allowing easy access to the desired welding point by one person.

Standard Welding Electrode Welding can be done efficiently by changing the electrode tip according to the type and size of product. It can also weld nut, or screws, etc.	Easy Set up and Operation. Comfortable working position: There is no need to hold the workpiece during welding; Pressurization is also automatic, greatly reducing the physical burden on the operator.

Table Spot Welding Machine
1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.
4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.
5. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.

Specification

Model	WL-SF-50/75/100K
Input Power (V/φ)	380/3
Rated Power (KVA)	50/75/100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Wleding Thickness (MM)	3.0+3.0
Warranty	1 years

Application and samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Applicable industries:

Various industries such as chassis and cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, etc.

Factory & Certificate

HWASHI : 22 years+ experience welding solutions expert

Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters.There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 counrties in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.
