HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh

  • 1
  • 2

Brand Name : HWASHI

Model Number : WL-SQ-MF160Kx2

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Spot Welding Machine 10 Hot Product Machinery Engine Parts Provided Hwashi Steel Wire /mesh Rod Welding Machine, Automatic Grid

After-sales Service Provided : Service Machinery Overseas

Output voltage : 12V

Effective welding width : 600-1000mm (customized)

Feeding Rack Mobile speed : 0.5m/sec

System controller : PLC+touch screen

Transformer : MF DC transformer

Contact Now

HWASHI Automatic Wire mesh Panel Cage Welding Making Machine Line for Welded Wire Mesh
HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh

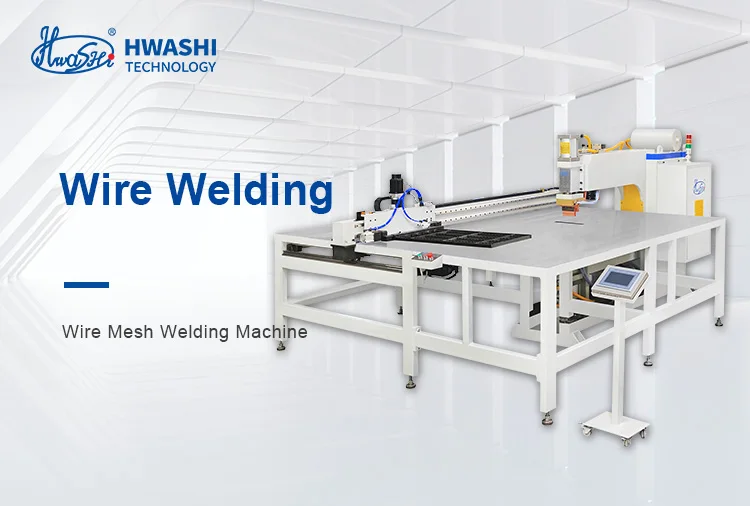

wire welding machine adopts a single-head long arm type welding structure, equipped withwork piece molds that move along the X and Y axis automatically. Input coordinatedata ofwelding position, welding current and other data to realize autormatic welding.Just need to load the material manually and take out the work piece. lt is suitable for the welding ofthe mesh with in the range of 1000mm X 1000mm.
Specification
Model
WL-TSP-100/150K
Input Power (V/φ)
380/3
Rated Power (KVA)
100/150
Applicable Material
Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)
250-400
Wleding Thickness (MM)
1-5mm
Warranty
1 years
Mesh Welding Range
1000mm X 1000mm
Production Line Machines
Other Machines Related to Wire Shelf Production Line Composition
We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.
HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh

Wire Flattening and Cutting Machine
This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.
HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh

High Speed Wire Straightenign and Cutting Machine
This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.
HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh
Wire Frame Bending Machine
This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.
HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh
Wire Frame Butt Welding Machine
The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.
HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh
Wire Frame Double T-Butt Machine
This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.
HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh
Wire Edge Trimming Machine
After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.
HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh

2D Wire Handle Bending Machine
This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.
HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh

3D Wire Bending Machine
This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
