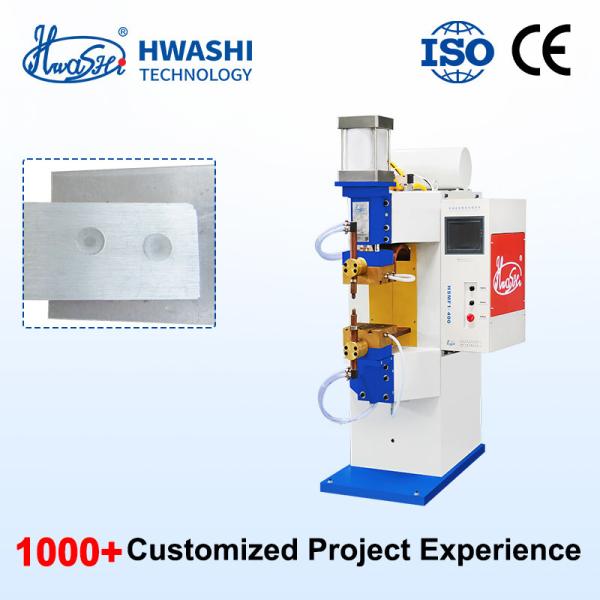

Hwashi Medium Frequency Spot Welder for Sheet Metal
The Medium Frequency Spot Welder is a state-of-the-art welding machine specifically designed for sheet metal applications. Utilizing advanced medium frequency inverter technology, this welder delivers precise, efficient, and high-quality welds, making it ideal for industries such as automotive, aerospace, electronics, and general manufacturing.
Specification:
| Model | | Rated Capacity
KVA | Max Short Circuit Current
KA | Duty Cycle Rate
% | Electrode
Force
KG | Electrode Stroke
mm | Cooling Water
L/min |
| WL-MF-5K | 380 3PH | 5 | 1.5 | 50 | 30 | 25 | 10 |
| WL-MF-10K | 380 3PH | 10 | 3 | 50 | 100 | 50 | 20 |
| WL-MF-15K | 380 3PH | 15 | 4.5 | 50 | 100 | 50 | 20 |
| WL-MF-25K | 380 3PH | 25 | 7.5 | 50 | 350 | 80 | 20 |
| WL-MF-35K | 380 3PH | 35 | 10 | 50 | 350 | 80 | 20 |
| WL-MF-50K | 380 3PH | 50 | 13 | 50 | 800 | 100 | 30 |
| WL-MF-75K | 380 3PH | 75 | 18 | 50 | 800 | 100 | 30 |
| WL-MF-100K | 380 3PH | 100 | 21 | 50 | 1000 | 100 | 30 |
| WL-MF-120K | 380 3PH | 120 | 23 | 50 | 1000 | 100 | 30 |
| WL-MF-160K | 380 3PH | 160 | 28 | 50 | 1000 | 100 | 30 |
| WL-MF-200K | 380 3PH | 200 | 32 | 50 | 1500 | 100 | 30 |
| WL-MF-250K | 380 3PH | 250 | 40 | 50 | 1500 | 100 | 50 |
| WL-MF-300K | 380 3PH | 300 | 48 | 50 | 2000 | 100 | 50 |
| WL-MF-350K | 380 3PH | 350 | 55 | 50 | 2000 | 100 | 60 |
| WL-MF-400K | 380 3PH | 400 | 62 | 50 | 2000 | 100 | 60 |
| WL-MF-500K | 380 3PH | 500 | 70 | 50 | 2000 | 100 | 60 |
Key Features
Medium Frequency Inverter Technology:
Operates at 1,000 Hz, providing faster response times, higher welding accuracy, and reduced energy consumption compared to traditional AC welders.
Ensures stable and consistent welding performance, even with varying material thicknesses.
High Precision Welding:
Equipped with advanced control systems for precise current, time, and pressure adjustments, ensuring strong and repeatable welds.
Ideal for welding thin to medium-thickness sheet metal with minimal distortion.
Energy Efficiency:
Medium frequency technology significantly reduces power consumption, making it an environmentally friendly and cost-effective solution.
Lower heat-affected zone (HAZ) reduces material warping and improves weld quality.
Applications:
- Automotive body assembly and repair
- Electronics and appliance manufacturing
- Aerospace component fabrication
- General sheet metal fabrication and repair
Why Choose HWASHI Spot Welding Machine?
Reliability: Consistent performance for high-quality welds.
Ease of Use: Suitable for both experienced operators and beginners.
Cost Savings: Reduces production time and energy consumption.
Intelligent welding control system
Intelligent Touch Screen Controller Input and readwelding parameters, Optional Digital Dial Code Type, Intelligent Microcomputer Type, Touch Screen Type.
Raw materials made to standard
Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding.
Custom processing of electrodes
Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.
Shape structure and welding method
Design the right machine shape
Upgrade your sheet metal welding process with our Medium Frequency Spot Welder and experience unmatched precision, efficiency, and performance. Contact us today for more information or to request a demo!
